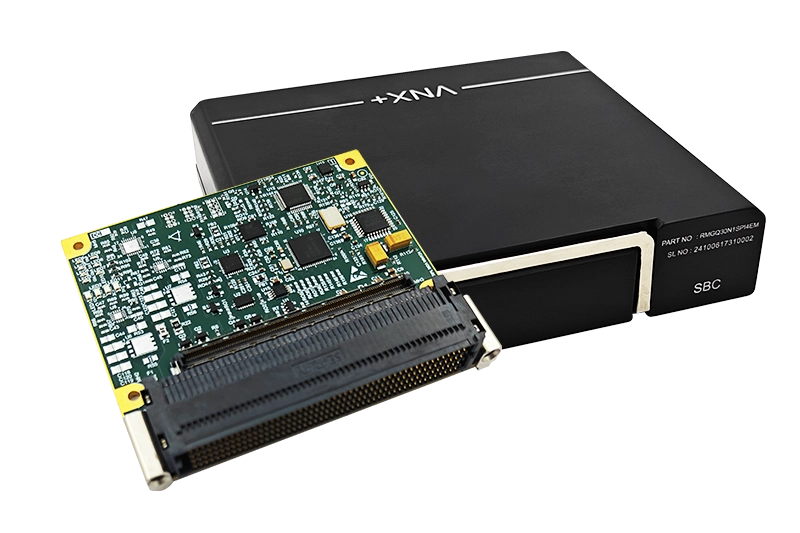

VNX+ SBC
Empowering Next-Generation Missions
with Ultra-Compact Computing
High-Density Logic
Delivers desktop-class processing power in a palm-sized footprint
Unified Ecosystem
Compatible with the full suite of VNX+ peripherals and backplanes
Low Latency Fabric
Optimized for real-time sensor data processing and signal intelligence
Future-Proof I/O
Supports high-bandwidth PCIe lanes for modern expansion needs
SWaP-Optimized
Optimal Size, Weight, & Power without compromising performance
The VNX+ SBC is a breakthrough in ultra-compact computing, engineered to provide high-performance processing within the standardized VITA 90 (VNX+) form factor
Technical Specification
→ CPU Options - Core™ i7 (1185GRE) or Atom™ (x5-E3930 or x6425RE)
→ Module Type - 19mm VNX+ Single Board Computer
→ Memory Capacity - Up to 16GB LPDDR4x
→ Local Storage - Integrated high-speed NVMe or eMMC options
→ Primary Interface - PCIe Gen3 Fabric Connectivity
→ Standard I/O - GigE, USB 3.0, Dual Serial Ports, and Discrete GPIO
→ Video Output - High-definition Digital Display Interfaces (DDI)
→ Input Power - +28V DC Nominal
→ VITA 90 Standard - Fully compliant with the latest VNX+ (VITA 90) STD
→ Operating Temp - -40°C to +85°C (Level 2/3 Ruggedization)
→ Conduction Cooled - Optimized thermal design for extreme temp.
