MAGPIE
The Ultra-Compact Micro Embedded
Computer for Extreme SWaP
Processor Options
Available in high-efficiency Atom and high-performance Core architecture variants
Ultra-Low SWaP
Best-in-industry utilization of Size, Weight, and Power (SWaP) for maximum efficiency
Micro Form Factor
Compact dimensions 5.90"x4.35"x2.15" for highly constrained spaces
Lightweight
Base unit weighs approximately 1.80 lbs, ideal for aerial and portable applications
Low Power
Efficient power consumption (15-25 Watts) suitable for battery-powered systems
Certified Robustness
Designed for extreme conditions in avionics, military, and industrial environments

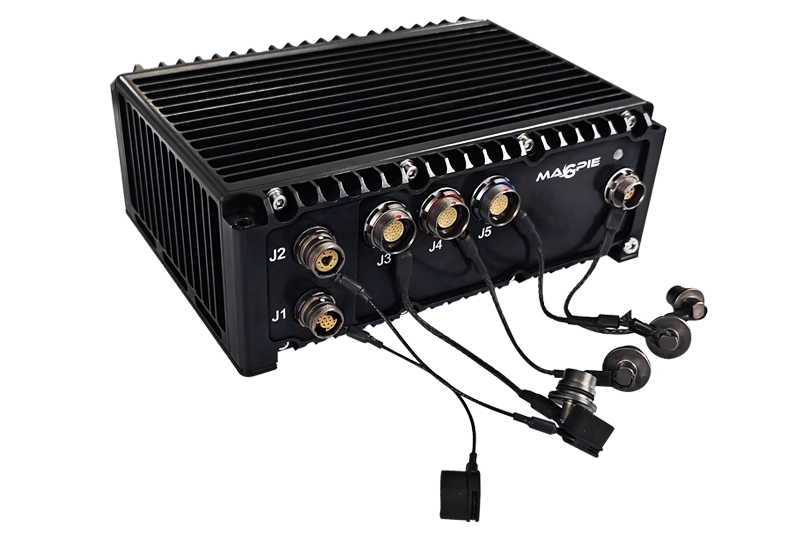

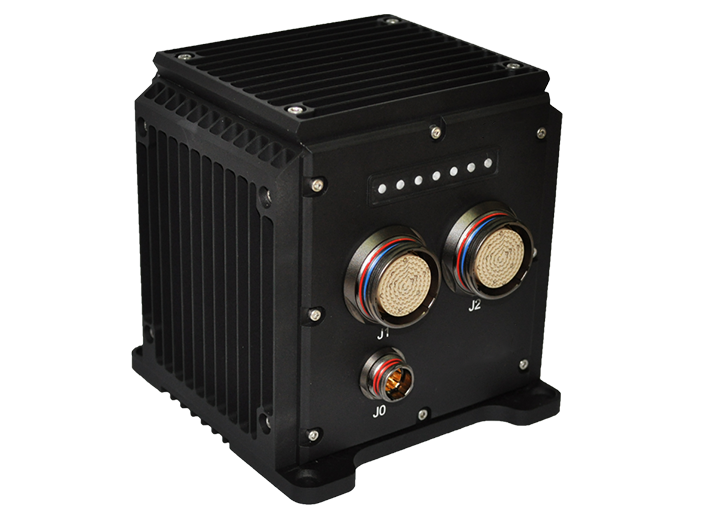

Magpie defines the smallest end of the computing spectrum, engineered for applications where every gram matters. This micro-footprint unit delivers powerful processing in a lightweight package, ensuring unmatched reliability and performance in even the most extreme conditions
Technical Specification
→ Processor - Intel® Atom x7000 series
→ Frequency - Up to 1.9GHz
→ Dimensions - 150x110x54 mm / 5.90x4.35x2.15 inches
→ Weight (Base Model) - ~1.80 lbs
→ Memory - Up to 16 GB LPDDR4
→ Storage - 64GB to 512GB (MLC / SLC)
→ Power Input - 28 VDC @ 15-25 Watts
(Configuration dependent without expansion boards)
→ Cooling - Conduction Cooled
Technical Specification
→ Processor - Intel® Core™ i7-1185GRE (11th Gen)
→ Frequency - Up to 1.8GHz
→ Dimensions mm - 150x110x54 mm / 5.90x4.35x2.15 inches
→ Weight (Base Model) - ~1.80 lbs
→ Memory - Up to 16 GB LPDDR4
→ Storage - 64GB to 512GB (MLC / SLC)
→ Power Input - 28 VDC @ 15-25 Watts
(Configuration dependent without expansion boards)
→ Cooling - Conduction Cooled
