VNX+ Test Jig TJ3
The Essential Development Platform
for VNX+ (VITA 90) Systems
Module Ready
Pre-provisioned mounting for VNX+ SBC, GPU, PSU, and Filter modules
Dual Power Options
Compatible with standard ATX power supplies or native VNX+ PSU modules
PCIe Integration
Enables seamless PCIe card interfacing for efficient module and driver development
Active Cooling
Optional fan assembly maintains optimal airflow for modules during intensive testing
Accessible I/O
All system I/Os are routed to industrial-grade connectors for hassle-free access
Integrated Storage
Dedicated support for mSATA drive integration during development cycles

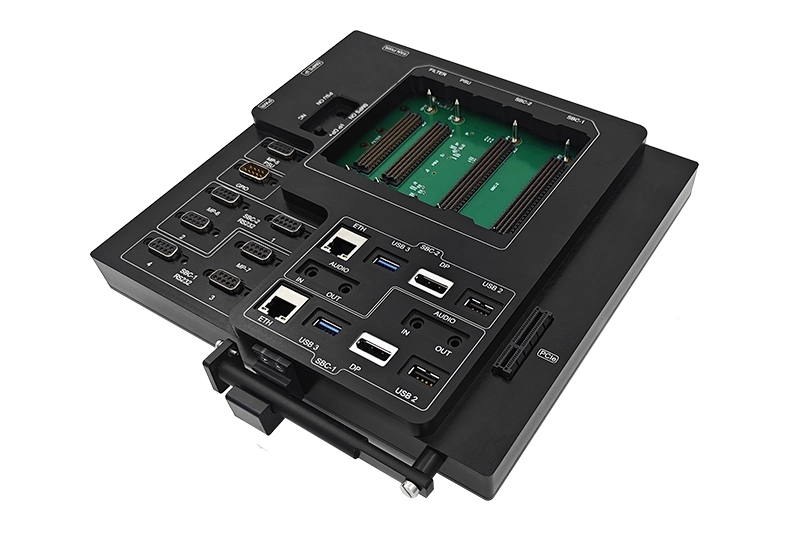

VNX+ Lab Test Bench TJ3 is a benchtop solution for evaluating and validating modular components. By providing open access to boards and peripherals, it enables unmatched reliability and performance in even the most extreme conditions
Technical Specification
→ Module Support - Provision for SBC, GPGPU, PSU, and Filter Modules
→ Data Interfacing - Flexible PCIe expansion for external card integration
→ Power Input - DC Power Jack and standard ATX Connector support
→ Storage Support - Onboard mSATA drive mounting site
→ Connectivity - Industrial connectors for standard peripheral and communication I/O
→ Form Factor - Open-frame desktop test jig for thermal and physical access
