NETSPYDER-DN
The Ultra-Compact Nano Ethernet Switch
for Space-Constrained Platforms
Nano Form Factor
Smallest footprint in the NetSpyder family for space-constrained integrations
Ultra-Lightweight
Weighs less than 1.1 lbs, ideal for weight-sensitive aerial platforms
Micro-D Connectivity
Utilizes a high-density 100-Pin Micro-D connector for all I/O and Power
Advanced Routing
Supports inter-VLAN routing and multiple VLANs for secure data isolation
Low Power Draw
Highly efficient operation with a maximum power consumption of 10 W
Rugged Standards
Compliant with MIL-STD requirements for extreme shock and vibration

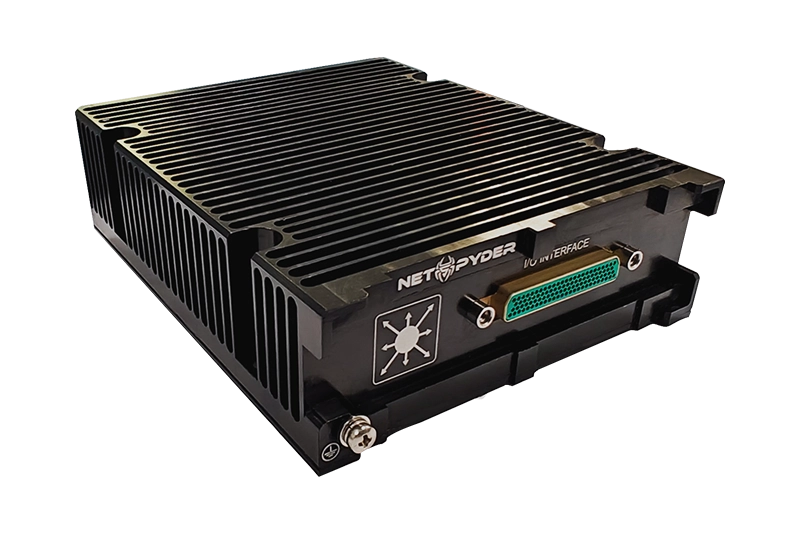

Netspyder-DNis the smallest GbE switch weighing under 1.1 lbs. This nano-sized, fully managed switch combines high-density interfaces with exceptional reliability and performance, even in the harshest conditions
Technical Specification
→ Switch Type - Managed Layer 2 / Layer 3
→ Port Count - 8 x 10/100/1000 Mbps Copper Ports
→ VLAN Support - Inter-VLAN Routing & Multiple VLAN Capability
→ I/O Interface - 100-Pin Micro-D (All Power & I/O)
→ Debug Port - Dedicated Console Port for Debugging
→ Dimensions (WxHxD) - 110x37x135 mm / 4.35x1.45x5.30 inches
→ Weight - < 1.1 lbs
→ Power Input - 18 to 32 VDC. Nominal 28VDC (Typical)
→ Power Consumption - 10W (max)
