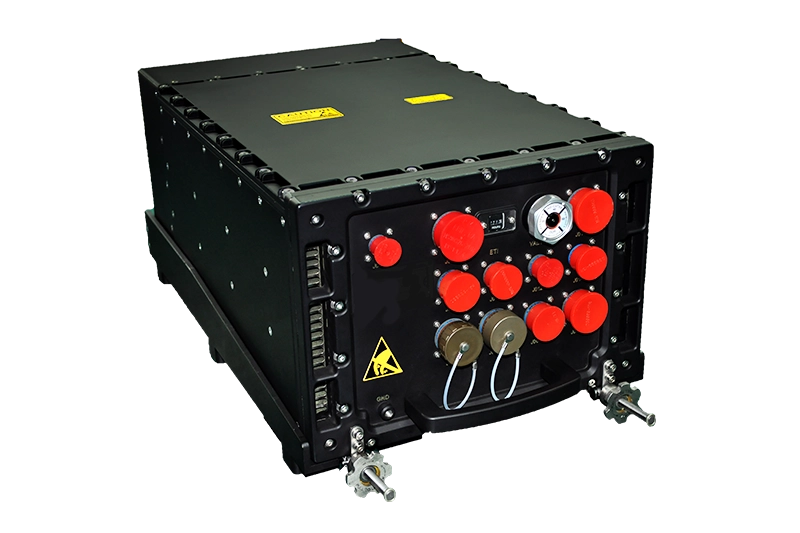

RUGGED FORCED AIR
CONDUCTION COOLED ATR CHASSIS
Superior Protection for Mission-Critical Electronics
MIL-SPEC Standards
Compliant with MIL-STD-810F for shock and vibration and MIL-STD-461E for EMC
Thermal Versatility
Supports conduction, forced-air, or liquid cooling based on TDP
Milled Construction
Precision-machined aluminum construction for maximum structural integrity
Cabling Efficiency
Cable-free harness design for improved reliability and airflow
Power Conditioning
Input transient protection compliant with MIL-STD-704E and MIL-STD-1275D
Custom Layouts
Flexible front and rear panel options with custom MIL-circular connector layouts
The ATR Chassis is designed to provide optimized cooling for high-density electronic systems. Supporting standard form factors and multiple cooling methods, it ensures unmatched reliability and performance in the most extreme conditions. These enclosures provide a high degree of protection for critical electronic hardware in unforgiving environments
Technical Specification
→ Cooling Method- Active cooling through heat exchangers.
→ Sealing Level- Internally Sealed - External fan airflow only.
→ Slot Capacity- Up to 10 Slots card area (1/2, 3/4, 1, 1 1/2)
→ Backplane- OpenVPX, VME, cPCI, Hybrid
→ Power Support- Integrated MIL-STD AC/DC PSU.
→ Connectors- MIL-C-38999 / ARINC 600.
→ IO Transition- Cable-less I/O PWB design.
→ Ideal Use Case- Airborne, shipborne and ground deployment
→ Mounting Options- Hard mount, Arinc404 and Custom
