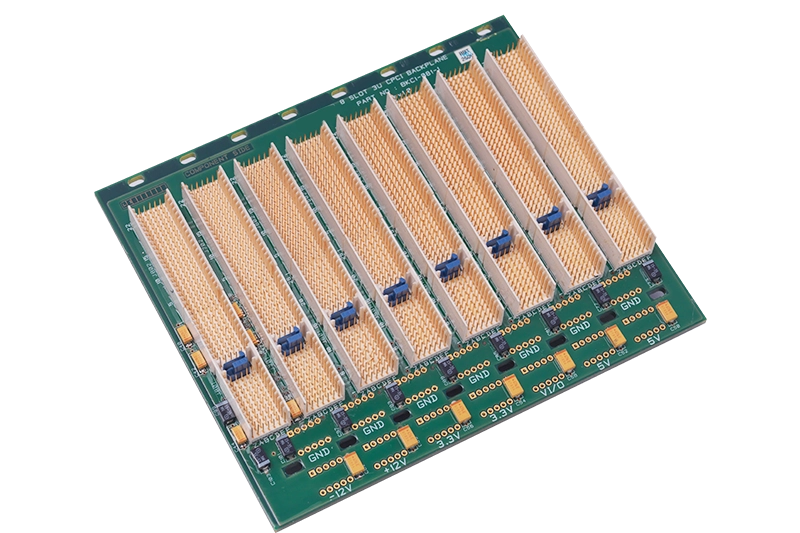

COMPACTPCI BACKPLANE
Standard Industrial PCI-Based
Modular Interconnect
Standardized I/O
Compatible with a vast ecosystem of COTS industrial peripheral cards
Power Integrity
Dedicated ground planes for low-noise operation in sensitive apps
Operational Range
Industrial-grade temperature and humidity resistant
CompactPCI Backplane solutions offer a standardized, versatile interface for modular industrial automation and communication systems. Built on the PICMG standard, they deliver unmatched reliability and performance even in the most extreme conditions. The Eurocard format provides mechanical stability and hot-swap capability, maximizing uptime for remote infrastructure nodes
Technical Specification
→ As per ANSI/VITA 1.1-1997
→ Conforms to PICMG Standards
→ 3U or 6U Form Factor
→ 02-16 Slots
→ Enhanced 16 Slots Bridged Optional
→ 32/64 Bit PCIbus
→ 8 to 12 layer
→ FR4 PCB or equivalent
→ Excellent power distribution
→ Operating Temperature: -40°C to +85°C
→ Custom Designs
