RUGGED AIR COOLED
ATR ENCLOSURES
Optimized Protection for High-Density Systems
Ultra-Lightweight
Aluminum construction engineered for weight-critical flight and mobile deployments
Forced Convection
Optimized airflow paths directly remove heat from high-wattage system components
3U/6U Flexibility
Modular internal card cages support a wide variety of card counts and form factors
Certified Rugged
Designed to meet MIL-STD-810F for shock/vibration and MIL-STD-461E for EMI/EMC
Power Scalability
Integrated power supplies supporting up to 1500W with MIL-STD transient protection
I/O Versatility
Supports MIL-C-38999 or ARINC 600 connectors for seamless system integration

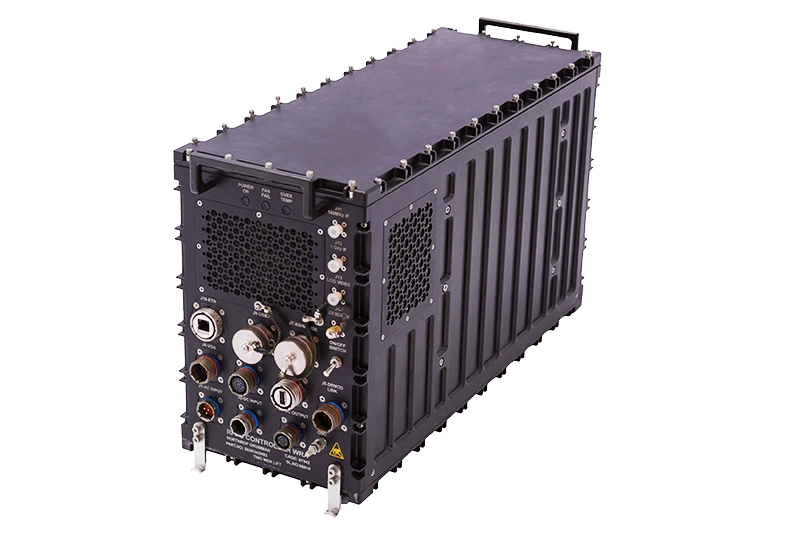

Unicorn is a specialized line of air-cooled ATR chassis built for applications where thermal efficiency is paramount. By utilizing forced-air convection within a lightweight structure, it ensures unmatched reliability and performance in even the most extreme conditions. This approach allows for lower weight compared to traditional units in weight-sensitive platforms
Technical Specification
→ Cooling Methodology- Forced Air Convection Cooled
→ Material- High-strength Aero-grade Aluminum with Milled construction
→ Slot Capacity- Supports up to 10 slots in various ATR footprints (1/2, 3/4, 1, 1 1/2)
→ Power Input- 1ϕ / 3ϕ AC or 28V DC Input options per MIL-STD-704E / 1275D
→ Backplane Options- OpenVPX, VME64x, or cPCI backplanes
→ IO Transition- Cable-less I/O PWB design
→ Mounting- Hard mount, ARINC 404, or custom shock-tray mounting options available
