HELIOS
Rugged VITA62
High-Density Power Supply
VITA 62 Standard
Integrates seamlessly into OpenVPX systems and chassis
Fault Tolerance
Built-in protection against electrical surge, spike, and inteference
Thermal Efficiency
Highly-efficient conduction cooled design for low dissipation
Versatile Rails
Supports multiple configurable voltage outputs for complex power loads
MIL-STD Compliance
Built to withstand and comply with the most demanding environmental standards

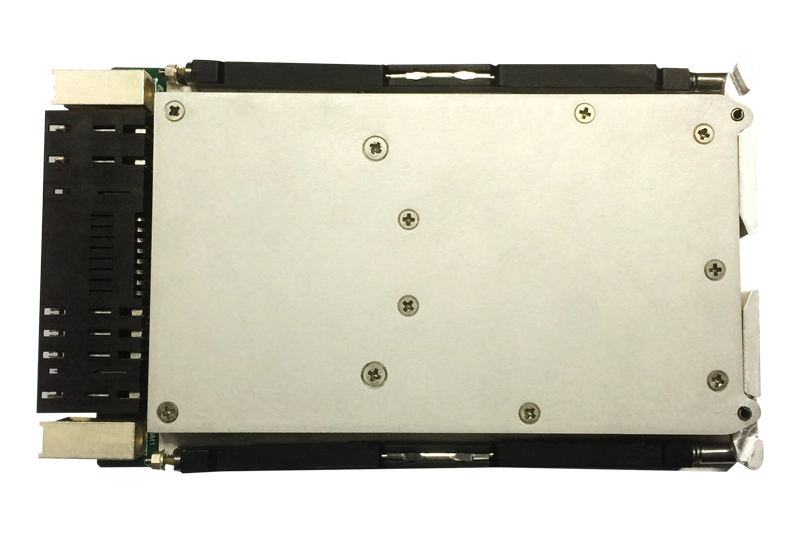

Helios Vita62 is a 3U and 6U OpenVPX power module designed for high-density, conduction-cooled systems. It offers versatile output configurations, delivering unmatched reliability and performance even in the most extreme conditions
Technical Specification
→ Form Factor - VITA 62 / 3U OpenVPX
→ Input Range - 18VDC to 36VDC
→ Output Power - Up to 500 Watts
→ Cooling - Conduction Cooled via baseplate or thermal rails
→ Efficiency - >90% at full rated load
→ Protection - Over-voltage, Over-current, Short-circuit, and Thermal
→ Compliance - Full alignment with VITA 62 electrical standards
→ Isolation - Galvanic isolation between input, output, and chassis
Technical Specification
→ Form Factor - VITA 62 / 6U OpenVPX
→ Input Range - 18VDC to 36VDC
→ Output Power - Up to 1000 Watts
→ Cooling - Conduction Cooled via baseplate or thermal rails
→ Efficiency - >90% at full rated load
→ Protection - Over-voltage, Over-current, Short-circuit, and Thermal
→ Compliance - Full alignment with VITA 62 electrical standards
→ Isolation - Galvanic isolation between input, output, and chassis
