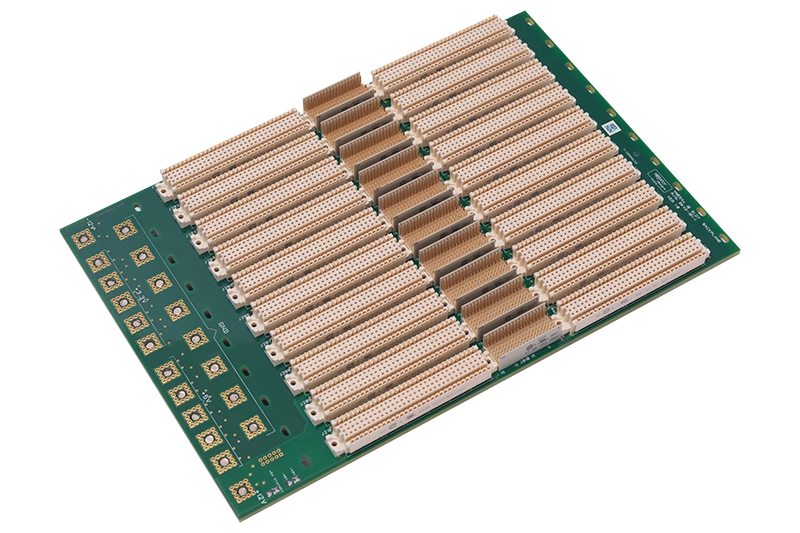

VME64x BACKPLANE
Robust Parallel Bus
for Long-Lifecycle Systems
Proven Legacy
Decades of field-proven VITA standard for mission-critical infrastructure
Signal Integrity
Impedance matching & zero crosstalk, excellent power integrity for reliable communication
Rugged Design
Built to withstand shock, vibration, extreme temperature and humidity in harsh tactical environments
Custom Config
Designed and engineered to address custom, application-specific system requirements
VME64x Backplane hardware remains the cornerstone of long-lifecycle industrial and defense computing, providing a robust parallel bus architecture. Its design ensures unmatched reliability and performance in even the most extreme conditions. Offering extensive interoperability for legacy and modern boards, this platform maintains functional stability in high-stress zones
Technical Specification
→ As per ANSI/VITA 1.1-1997
→ IEEE 1101.10 Mechanical Standards
→ 02 to 21 slots, 6U VME64x
→ P1/P2/P0
→ Standard Rear I/O
→ With PIB as per PICMG2.11
→ FR4 PCB, 4.2mm thick
→ Excellent Signal integrity
→ Superior Power Distribution
→ Active / Passive bus termination
→ Auto Daisy Chain
→ +5, +3V3 & ±12V Interface Studs
→ Operating Temperature: -40°C to +85°C
→ Custom Designs
