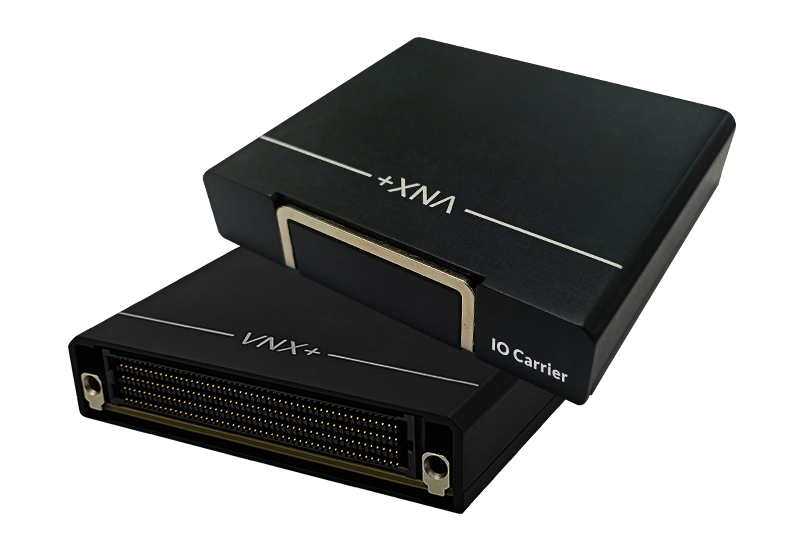

VNX+ I/O CARRIER
Flexible Interfaces, Enhanced System Capability
I/O Aggregation
Consolidates multiple high-speed interfaces into a single, compact 19mm module
Protocol Flexibility
Supports a wide range of signals, from legacy serial interfaces to modern high-speed Ethernet
Rapid Prototyping
Accelerates system development by providing ready-made connectivity for VNX+ SBCs
Optimized Footprint
Meets the strict SWaP-C requirements of modern aerospace and defense platforms
Signal Integrity
Precision-engineered PCB routing ensures low latency and EMI/EMC compliance
The VNX+ I/O Carrier is a versatile expansion module designed to maximize the interface capabilities of VITA 90–compliant systems. It provides a ruggedized bridge between high-speed internal fabrics and external mission-critical sensors
Technical Specification
→ Module Type - 19mm VNX+ I/O Expansion Carrier
→ Primary Interface - PCIe Gen3/Gen4 high-speed fabric connectivity
→ Ethernet Support - Multiple channels of 10/100/1000Base-T or 10G Optical
→ Serial Connectivity - Software-configurable RS-232/422/485 ports
→ USB & GPIO - Multiple USB 3.0/2.0 ports and isolated Digital I/O lines
→ Expansion Slot - Internal support for mezzanine-style I/O sub-modules
→ Operating Temp - -40°C to +85°C (Extended temperature range)
→ Environmental - MIL-STD-810H, MIL-STD-461G, DO-160 compliant
→ VITA 90 Standard - Fully compliant with the latest VNX+ (VITA 90) STD
→ Conduction Cooled - Optimized thermal design for extreme temp
