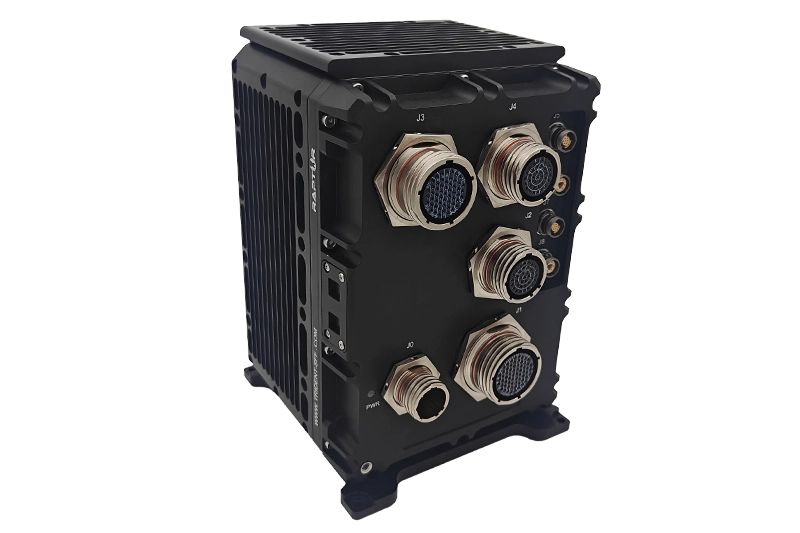

RAPTOR X7
Modular VNX+ Integrated Systems
for the Tactical Edge
Flexible Processing
Supports high-performance Intel® Core™ i7 or NVIDIA GPGPU/AI modules
VNX+ Modular Core
Utilizes 19 mm compute, I/O, and power modules on a standardized VITA 90 backplane
5 & 7 Slot Options
Configurable backplanes slots tailored to your specific I/O and processing requirements
Mission Critical Design
Rugged platform designed for extreme aerospace and defense operations
SWaP Optimized SFF
Delivers maximum capability while adhering to strict size, weight, and power (SWaP) constraints
MIL-STD Compliance
Built to withstand and comply with the most demanding environmental standards
Raptor-X7 represent the pinnacle of integrated modular backplane architectures. These platforms allow for a custom balance of compute and power modules, ensuring unmatched reliability and performance in even the most extreme conditions
Technical Specification
→ Backplane Capacity - Modular 7-slot design
→ Primary Compute - Intel® Core™ i7-1185GRE (with 16GB LPDDR4x & 64GB NVME)
→ GPGPU Option - NVIDIA Orin NX (with 16GB & 240GB Storage)
→ Dimensions - 130x193.5x133 mm / 5.10x7.60x5.25 inches
→ Weigh - 9.25 lbs ±2%.
→ Operating Temp - -40°C to +71°C (Configuration Dependent / with air-assist)
→ Power Input - 28 VDC
→ Standards - MIL-STD-810H, MIL-STD-461G, MIL-STD-704F/1275F
