HELIOS PSU FILTER
Ultimate EMI Protection and
Power Conditioning for Rugged VNX+ Systems
Superior EMI Shielding
Provides enhanced electromagnetic compatibility to ensure reliable operation in mission-critical environments
Transient Protection
Safeguards the system against electrical spikes and surge events in tactical power conditions
MIL-STD Compliance
Designed to meet MIL-STD-461 standards for radiated and conducted emissions and power quality benchmarks
Low Insertion Loss
Minimizes attenuation while maintaining signal integrity and overall system performance
Robust Construction
Fully encapsulated electronics provide protection against moisture, dust, and corrosive atmospheres

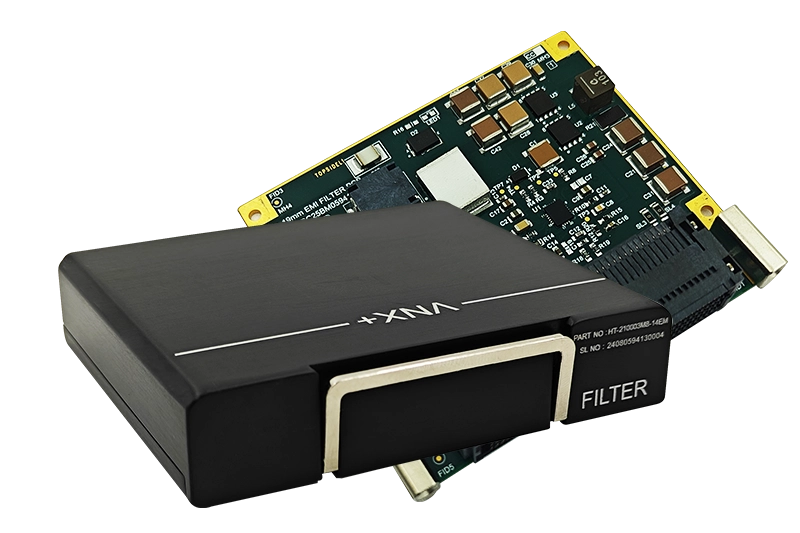

The HELIOS PSU Filter is a high-performance electromagnetic interference (EMI) suppression module specifically engineered for VITA 90-compliant systems. It serves as the primary defense against harsh electrical environments, cleaning incoming raw vehicle or aircraft power to protect sensitive downstream electronics
Technical Specification
→ Module Type - 19mm VNX+ EMI Filter & Power Conditioner
→ Input Range - Designed for 18V to 36V DC inputs (28V DC Nominal)
→ Current Rating - Supports high-current throughput up to 15A continuous
→ EMI Standards - Protection: Reverse, Transient & Over voltage
→ EMI Standards - Meets MIL-STD-461G
→ Power Standards - Compliant with MIL-STD-704F and MIL-STD-1275E transients
→ Isolation - Integrated galvanic isolation and common-mode noise rejection
→ Operating Temp - -40°C to +85°C (Extended temp)
→ VITA 90 Standard - Fully compliant with the latest VNX+ (VITA 90) STD
→ Conduction Cooled - Optimized thermal design for extreme temp.
