NETSPYDER-DA
The High-Density Gigabit Switch
for Complex Tactical Networks
High Port Density
Features 24× 1000Base-T ports with high-speed uplinks in a compact footprint
10GbE Backbone
Supports up to 4× 10GbE SFP+ optical ports for high-bandwidth data throughput
Ultra-Lightweight
Weighs less than 4.85 lbs, minimizing impact on total system payload
L2/L3 Management
Full support for advanced switching and dynamic routing for complex subnets
Tactical Toughness
Designed to withstand high shock, vibration, and extreme thermal cycling
Fanless Reliability
Conduction-cooled, sealed chassis eliminates moving parts and dust intake

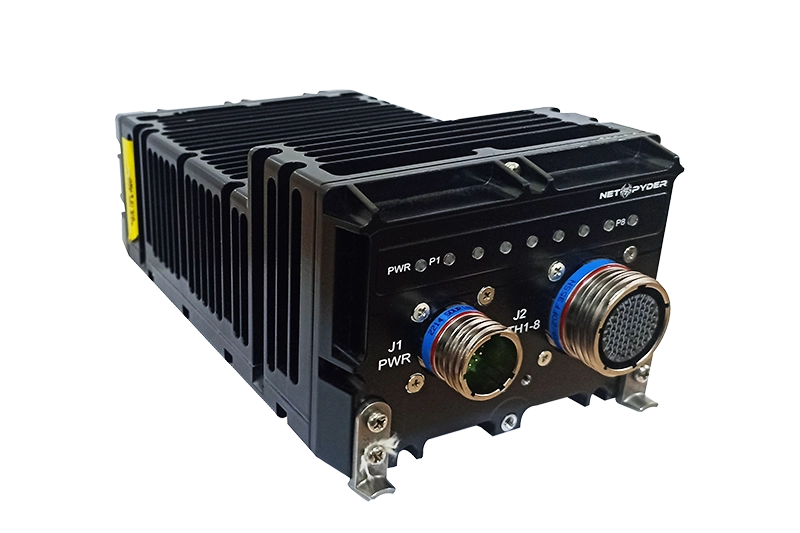

Netspyder-DA is a high-port-density network switch designed for space-constrained environments. It’s ultra-lightweight, fanless architecture, delivers unmatched reliability and performance in even the most extreme conditions
Technical Specification
→ Copper Ethernet - 8 x 1Gb Copper (10/100/1000Mbps)
→ Optical Ethernet - 2 x 10Gb SFP+ (Build Option)
→ Management - 1 x RS232 Console Port
→ Dimensions (WxHxD) - 124x87x160 mm / 4.90x3.45x6.30 inches
→ Weight - < 4.85 lbs
→ Power Consumption - 30 Watts typ (configuration dependent)
→ Cooling - Conduction Cooled / Fanless
Technical Specification
→ Copper Ethernet - 24 x 1Gb Copper (10/100/1000Mbps)
→ Optical Ethernet - 4 x 10Gb SFP+ (Build Option)
→ Management - 1 x RS232 Console Port
→ Dimensions (WxHxD) - 160x87x180 mm / 6.30x3.45x7.10 inches
→ Weight - < 9.70 lbs
→ Power Input - 40Watts typ (configuration dependent)
→ Cooling - Conduction Cooled / Fanless
