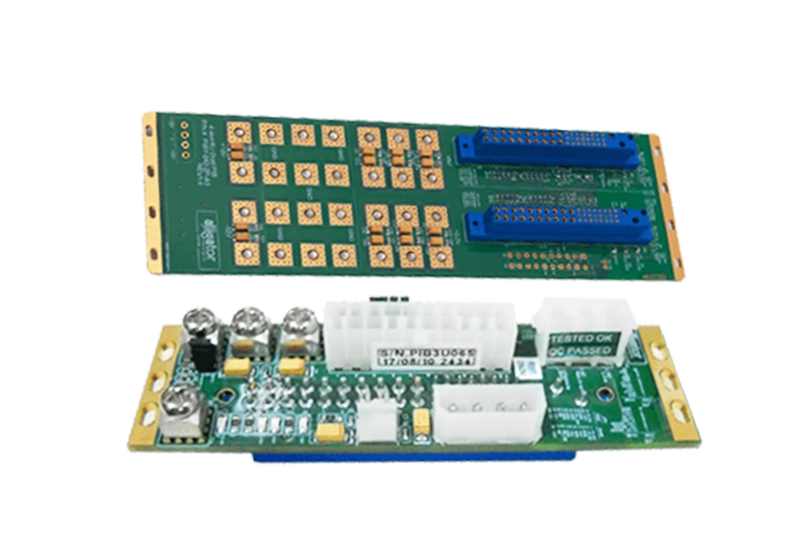

POWER INTERFACE BOARD
Central Energy Distribution
and EMI Filtration Hub
Clean Power
Removes electrical noise before it reaches critical system components
Surge Suppression
Protects against voltage spikes and transients in vehicle platforms
Diagnostic Logic
Real-time voltage and current monitoring for system health checks
Power Interface Board (PIB) units serve as the central energy distribution hub for complex modular enclosures and multi-slot backplanes. Through advanced EMI filtering and voltage regulation, they deliver unmatched reliability and performance even in the most extreme conditions. This hardware provides the electrical foundation required for sensitive electronic arrays
Technical Specification
→ As per ANSI/VITA 1.1-1997
→ Designed to meet power interface specification as per PICMG 2.11
→ Designed to Plug up to 1200Watts PSUs
→ 3U/6U, Dual slot PIB/ Quad slot PIB
→ AC / DC input
→ Dual Positronics P47 Connector Interface for Plug-in PSUs
→ Output Power Bugs with Distribution at rear
→ IEEE1101.10 Mechanical Standards
→ FR4, Minimum 10 Layers PCB
→ Extended Operating Temperature: -40°C to +85°C
→ Custom Design
