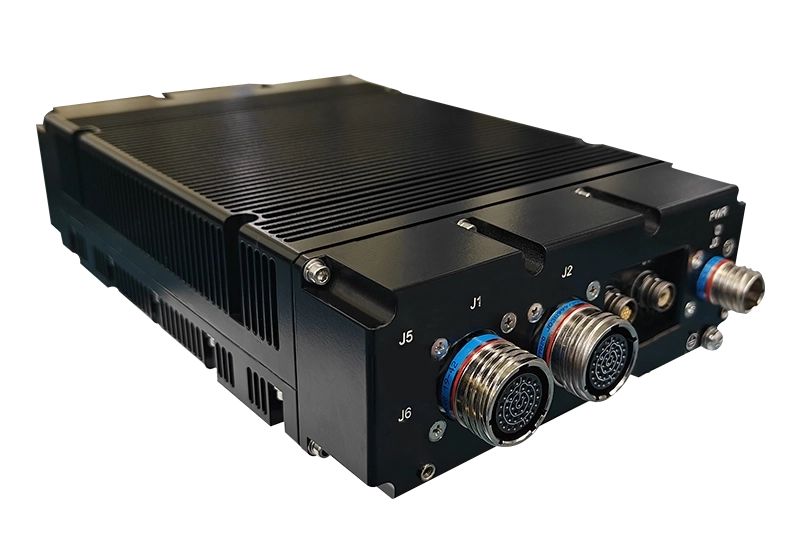

LANIUS
Compact Mini Embedded Computer
for SWaP-Optimized Applications
State-of-the-Art Performance
Utilizes the latest processors to deliver high computational power in a compact system
Configurable I/O Expansion
Supports interfaces including MIL-STD-1553B, ARINC-429 (via MiniPCIe), Serial, Analog, Digital, and CAN
Extreme SWaP Efficiency
Excellent performance-to-size ratio in a rugged chassis (approximately 5.30 lbs)
Conduction Cooled
Sealed, fanless operation ensures reliable performance in extreme temperature environments
Integrated Communications
Optional support for GPS, Wi-Fi, cellular connectivity, and inertial measurement units (IMUs)
High-Speed Networking
Options available for both GigE and 10 GigE copper ports
Lanius is a next-generation mini rugged Small Form Factor (SFF) Application-Ready Platform built on open COMe architectures. It delivers high-end processing performance for mission-critical C5ISR and High-Performance Embedded Computing (HPEC) applications
Technical Specification
→ Processor - Intel® Core™ i7-13800HRE (13th Gen)
→ Cores/Threads - 6P+8E/20T
→ Storage - Up to 1980GB with M.2 SATA / NVME Interface
→ Memory - Up to 64 GB DDR5 RAM
→ Power Input - 28 Vdc @ 40-60 Watts (*Configuration Dependent)
→ Dimensions- 162x215.5x75 mm / 6.40x8.5x2.95 inches
→ Weight (Standard) - ~2.35 Kg / ~5.2 lbs. (*Configuration Dependent)
→ I/O Expansion - MiniPCIe IO modules supported (including Acropack®)
Technical Specification
→ Processor - Intel® Xeon® W-11865MRE (11th Gen)
→ Cores/Threads - 8C/16T
→ Storage - Up to 1980GB with M.2 SATA / NVME Interface
→ Memory - Up to 64 GB DDR5 RAM
→ Power Input - 28 Vdc @ 40-60 Watts (*Configuration Dependent)
→ Dimensions- 162x215.5x75 mm / 6.40x8.5x2.95 inches
→ Weight (Standard) - ~2.35 Kg / ~5.2 lbs. (*Configuration Dependent)
→ I/O Expansion - MiniPCIe IO modules supported (including Acropack®)
