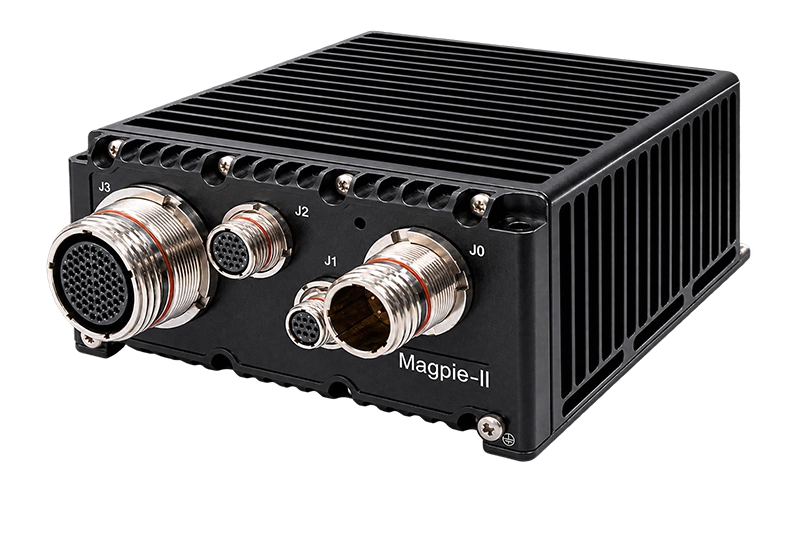

Advanced Rugged Fanless
Micro Embedded Computer
- Magpie II
Processor Options
Available in high-efficiency Intel and high-performance Core architecture variants
Ultra-Low SWaP
Best-in-industry utilization of Size, Weight, and Power (SWaP) for maximum efficiency
Micro Form Factor
Compact dimensions 5.12"×2.36"×5.71" for highly constrained spaces
Lightweight
Base unit weighs approximately 2.9 lbs, ideal for aerial and portable applications
Low Power
Efficient power consumption (15 Watts) suitable for battery-powered systems
Certified Robustness
Designed for extreme conditions in avionics, military, and industrial environments
Magpie II defines the smallest end of the computing spectrum, engineered for applications where every gram matters. This micro-footprint unit delivers powerful processing in a lightweight package, ensuring unmatched reliability and performance in even the most extreme conditions
Technical Specification
→ Processor - Intel® Core™ i7-1365URE 2P/8E, 1.70 GHz series (13th Gen)
→ Memory - 32GB (Max. 64GB) Onboard LPDDR5
→ Storage - up to 1980GB with M.2 SATA / NVME Interface
→ Integrated Graphics - Intel® Iris® Xe Graphics
→ Dimensions - 130x60x145 mm / 5.12×2.36×5.71 inches
→ Weight (Standard) - ≤1.3 Kg / ≤2.9 lbs
→ Power Input - 28VDC, <50W Watts
(*Configuration dependent without expansion boards)
→ Cooling - Conduction Cooled
Technical Specification
→ Processor - Intel® Core™ i7-1185GRE 4C, 2.8 GHz series (11th Gen)
→ Memory - 32GB (Max. 64GB) SO-DIMM DDR4
→ Storage - up to 1980GB with M.2 SATA / NVME Interface
→ Integrated Graphics - Intel® Iris® Xe Graphics
→ Dimensions - 130x60x145 mm / 5.12×2.36×5.71 inches
→ Weight (Standard) - ≤1.3 Kg / ≤2.9 lbs
→ Power Input - 28VDC, <50W Watts
(*Configuration dependent without expansion boards)
→ Cooling - Conduction Cooled
Product Video
Magpie Overview — Micro Form Factor, Full Power
A closer look at Magpie's rugged construction, port layout, and deployment scenarios.
