The Lanner is a Rugged Micro Computer in a very small form factor weighing < 800gms made for space critical applications. The compact rugged computer is suitable for all kind of harsh military environments and is optimal for instance in combat vehicles, helicopters and UAVs which needs extremely small footprint and ultra-slim systems.
Lanner is so small that it fits in the palm of the hand!
Lanner is fanless and its chassis is fully sealed for protection against dust and corrosive elements and is designed to meet military standards. The Lanner combines years of design experience with a wealth of cutting edge features. It’s robust performance make it an attractive choice for military, commercial, and industrial use.
Technical Specification
- Lanner - IA
- Lanner - TX
- Lanner II
- Applications

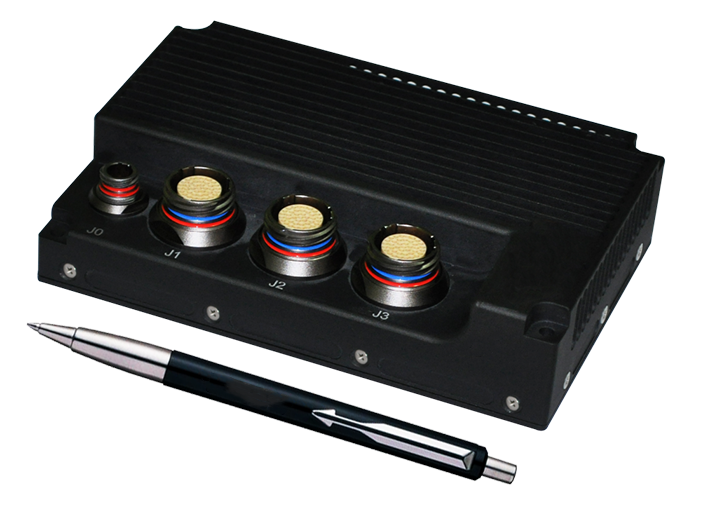

Lanner - IA
- CPU: Quad Core Atom @ 2.0Ghz
- Memory: 4 GB RAM
- 64 GB EMMC Flash
- Video: 1x DVI Output / 1x HDMI
- I/O: 2x GigE, 1x USB 3.0 / 2x USB 2.0, 2x Serial, Audio, GPIO, I2C
- Expansion: 2x mPCIe + 2x mSATA
- Dimensions: 150mm x 100 mm x 35mm
- Weight: ~0.8 Kg
- High Density Micro D Connector (Standard) / circular
- Power: 28 VDC @ 15-20 Watts (Varies per Options)
- Operating Temp: -40°C to +55°C, Storage Temp: -40°C to +85°C
- MIL-STD-810F, MIL-STD-461F, MIL-STD-704F/1275D
- OS: Linux, Windows

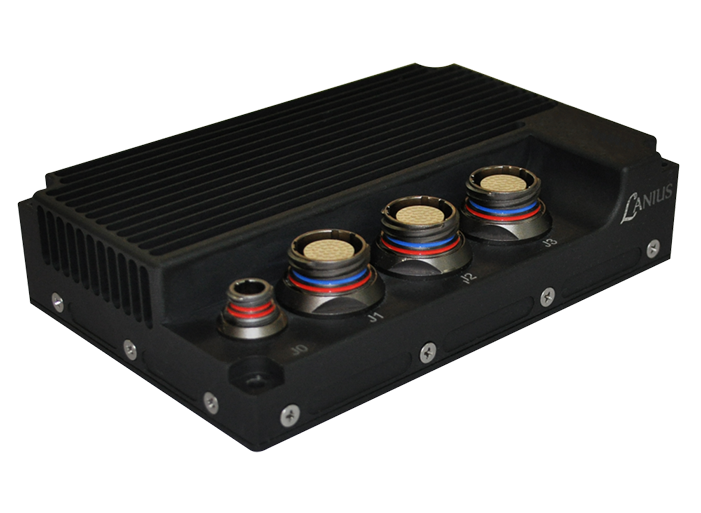

Lanner - TX
- CPU: NVIDIA Tegra X1 Quad-core ARM Cortex-A57 / NVIDIA Tegra X2 Quad ARM® A57
- Graphics: NVIDIA Pascal™ (1.5TFLOPS) / NVIDIA Maxwell™ GPU (1 TFLOPS)
- Memory: 8 GB LPDDR4
- Mass Storage: 32GB eMMC
- Video Output: DP / HDMI / DVI
- I/Os:
• 2 x GigE
• 2 x USB2.0
• 1 x HD Audio, 1 x UART, 8 x GPIO
• 3 x miniPCIe + 1x mPCI / mSATA - Dimensions: 150mm x 100mm x 35mm
- Weight: < 1Kg
- Power: 9 - 36 VDC
- Operating Temp: -40 °C ~ +55 °C
- MIL-STD-810F, MIL-STD-461F, MIL-STD-704F/1275D
- Operating System: Ubuntu, Linux

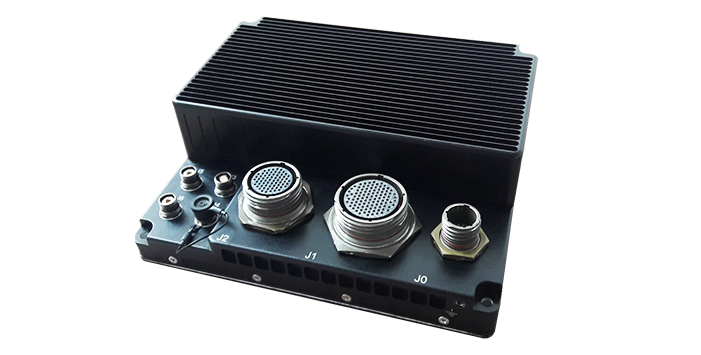

Lanner II
- CPU: i7-6th GEN Dual Core / Quad Core
- Memory: 8-32 GB (RAM)
- Mass Storage: Upto 1 TB
- Video Output: 2x DP / DVI
- I/Os: : (through MIL-STD-38999 & Hercules Connectors)
• 2x GigE
• 2x USB3.0
• 2x USB2.0
• 1x HD Audio, 2x UART, 8x GPIO
• 4x miniPCIe + 2x mSATA - Dimensions: 200mm x 175mm x 60mm
- Weight: < 2Kg
- Power: 12 - 36 VDC
- Operating Temp: -40 °C ~ +71 °C
- MIL-STD-810F, MIL-STD-461F, MIL-STD-704F/1275D
- Operating System: Linux, Win10
Applications
SBC with Audio & Video Graphics
XMC SDR, ATDS / NTDS
MIL-STD-1553b Data Bus
Discrete I/O
Gigabit Ethernet
Optional IMU/GPS
