Buzzard is a rugged small form factor (SFF) computer system, specifically tailored for the avionic, military and rugged industrial market. The system offers the best utilization of Size, Weight and Power (SWaP) in the industry, and strictly adheres to Commercial Off the Shelf (COTS) standards in the industry. Though its size is small, the Buzzard II is mighty.
The versatile Buzzard may be configured with the latest high performance computer and graphics engines, as well as the best SWaP optimized, low power, System on Chip (SoC) processors; and every solution in between.
The Buzzard can support all I/O typically needed in the targeted applications, including MIL-STD-1553B, ARINC-429, AS-5643 MIL Firewire, Video Graphics, Video Frame Capture, RS-232/422/485, Fibre Channel, GigE and 10GigE, Analog and Discrete signals, and FPGA / GPGPU processors, etc. The I/O can be XMC or MiniPCIe, including Acromag’s® revolutionary “Plug and Play” AcroPack. There are additional options for Inertial Measurement and Navigation, GPS, Wi-Fi and Cellular Modem functions.
Technical Specification
- Buzzard II with Advanced Features
- Buzzard III
- Applications

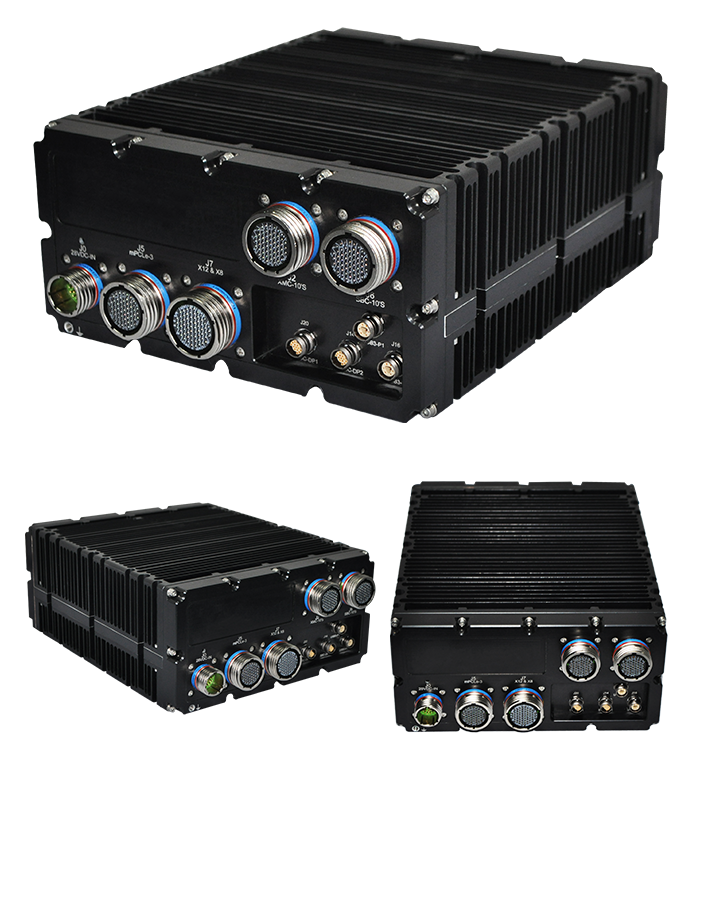

Buzzard II with Advanced Features
- CPU: Intel Core i7/ Xeon E3 Processors 9th Generation or latest
- Cores: 4 or 6 Cores
- Memory: up to 64 GB DDR4 RAM (with or without ECC)
- Storage: up to 1980GB with M.2 Interface
- Integrated Graphics: Intel UHD Graphics Controller
- Video Outputs: 2 x Display Ports
- I/O’s (Standard):
- 2 x 10G Ethernet (Copper or Fiber)
- 2 x 1 Gigabit Ethernet (PoE+ Option)
- 2 x USB 3.0, 2 x USB 2.0
- 1 x HD AUDIO
- 4 x RS232 (TX/RX)/RS422/RS485
- 1 x RS232 (TX/RX- Console)
- 8 x GPIOs
- I/O’s Expansion
- 4 x MiniPCIe / AcroPack Sites (Gen 3 PCIe)
- 1 x XMC Site (x8 Gen 3 PCIe), VITA 42 Compliant
- Security: TPM 2.0 (optional)
- Dimensions: 217mm x 260mm x 105mm
- Weight: ≤ 4.3 to 4.9 Kgs. (Configuration Dependent)
- Connectors: MIL-Circular
- Storage Expansion - Option: 1 x SATA -III SSD Mass Storage Drive (with optional Secure Erase or Zeroize Function)
- Health Monitor: System Health Monitor & Control (Optional)
- Power: 28 VDC @ 25-100 Watts (Configuration Dependent)
- Operating Temp: -40°C to +55 °C, up to +71°C (Depending on Thermal Load)
- Storage Temp: -40°C to +85 °C
- Environmental: MIL-STD-461G, MIL-STD-704F, MIL-STD-1275E and MIL- STD-810H
- Cooling: Fanless Conduction Cooled
- Operating System Support: Windows 10, Linux & VxWorks
*Note: Various Configuration & Build Options are available, contact us for details.

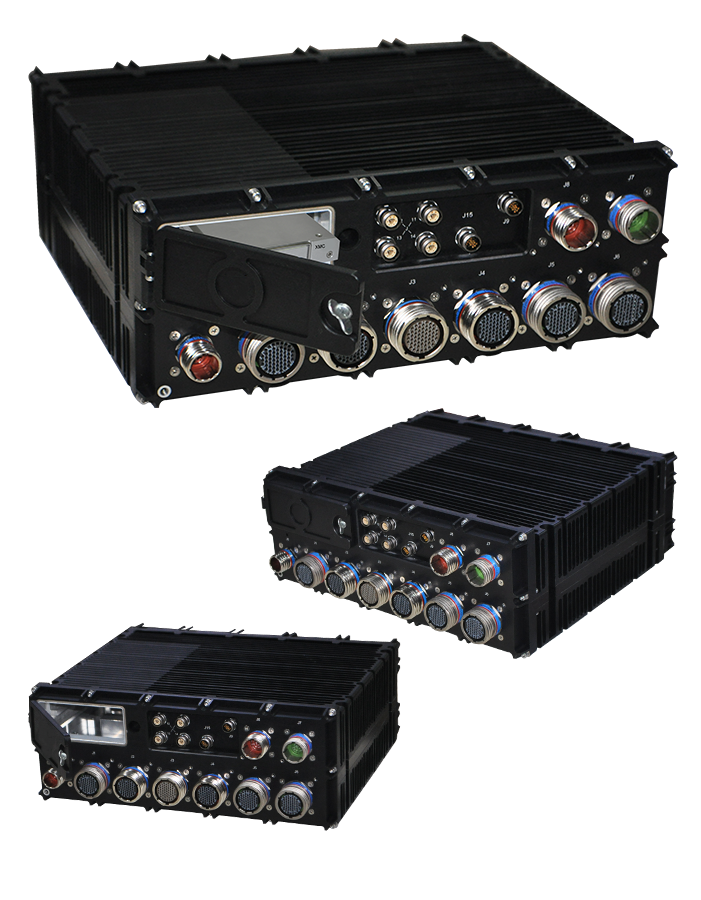

Buzzard III
- CPU: Intel Xeon® E-2276ML or CoreTM i7-9850HL Processor
- Memory: up to 64 GB DDR4 RAM
- Storage: up to 1920GB through M.2 (SATA)
- Integrated Intel UHD Graphics Controller
- Video Outputs: 2 x Display Ports
- I/O’s (Standard):
- 2 x 10G Copper (Optional)
- 2 x Gigabit Ethernet
- 2 x USB 3.0, 2 x USB 2.0
- 4 x RS232 / 422 / 485
- 1x Audio IN & 1x Audio OUT
- 8 x GPIOs
- I/O’s Expansion:
- 2 x XMC Sites (Gen 3 PCIe)
- 5 x MiniPCIe / AcroPack Sites (Gen 3 PCIe)
- Removable Storage: 2x 2.5” SSD – SATA III Drive
- Security: TPM 2.0 (optional)
- Dimensions: 300x115x270mm
- Weight: 7.5±0.3 kg without XMC
- Connectors: MIL-Circular
- Health Monitor: System Health Monitor & Control (Optional)
- Power: 28 VDC @ 35 W - 85 Watts (Configuration Dependent)
- Operating Temp: -40°C to +55 °C, up to +71°C (Depending on Thermal Load)
- Storage Temp: -40°C to +85 °C
- Environmental: MIL-STD-461G, MIL-STD-704F/MIL-STD-1275E and MIL- STD-810H
- Cooling: Fanless Conduction Cooled
- Operating System Support: Windows & Linux
Applications
SBC with Audio & Video Graphics
XMC SDR, ATDS / NTDS
MIL-STD-1553b Data Bus
Discrete I/O
Gigabit Ethernet
Optional IMU/GPS
